Safeway, one of the largest, most innovative retail grocery companies in North America, needed to consolidate operations, reduce labor costs, and improve order accuracy at a key distribution center in the Pacfic Northwest. Safeway partnered with Dematic to implement a new store order assembly system designed to deliver efficiencies and accommodate future growth.
Safeway needed to consolidate multiple distribution centers into one operation which could support over 500 retail stores. Safeway worked with Dematic to design and implement an order fulfillment system for split case items. The system would require a high density, compact logistics solution that could be implemented without adding on to the existing building.
The system would need to control access to inventory and provide real-time visibility, while increasing picking efficiency and throughput. Material flow had to be automated and allow strategic system management to streamline functions from receiving to shipping.
Performance optimizing software with analytics would be necessary to support inventory and order accuracy. The software would direct the order assembly process to make shelf restocking at the retail stores more efficient.
At receiving, pallets are stored in an automated storage and retrieval system. When product is required in the piece pick sub-system, pallets are sent to a decant workstation where operators transfer the contents of each case to a tote.

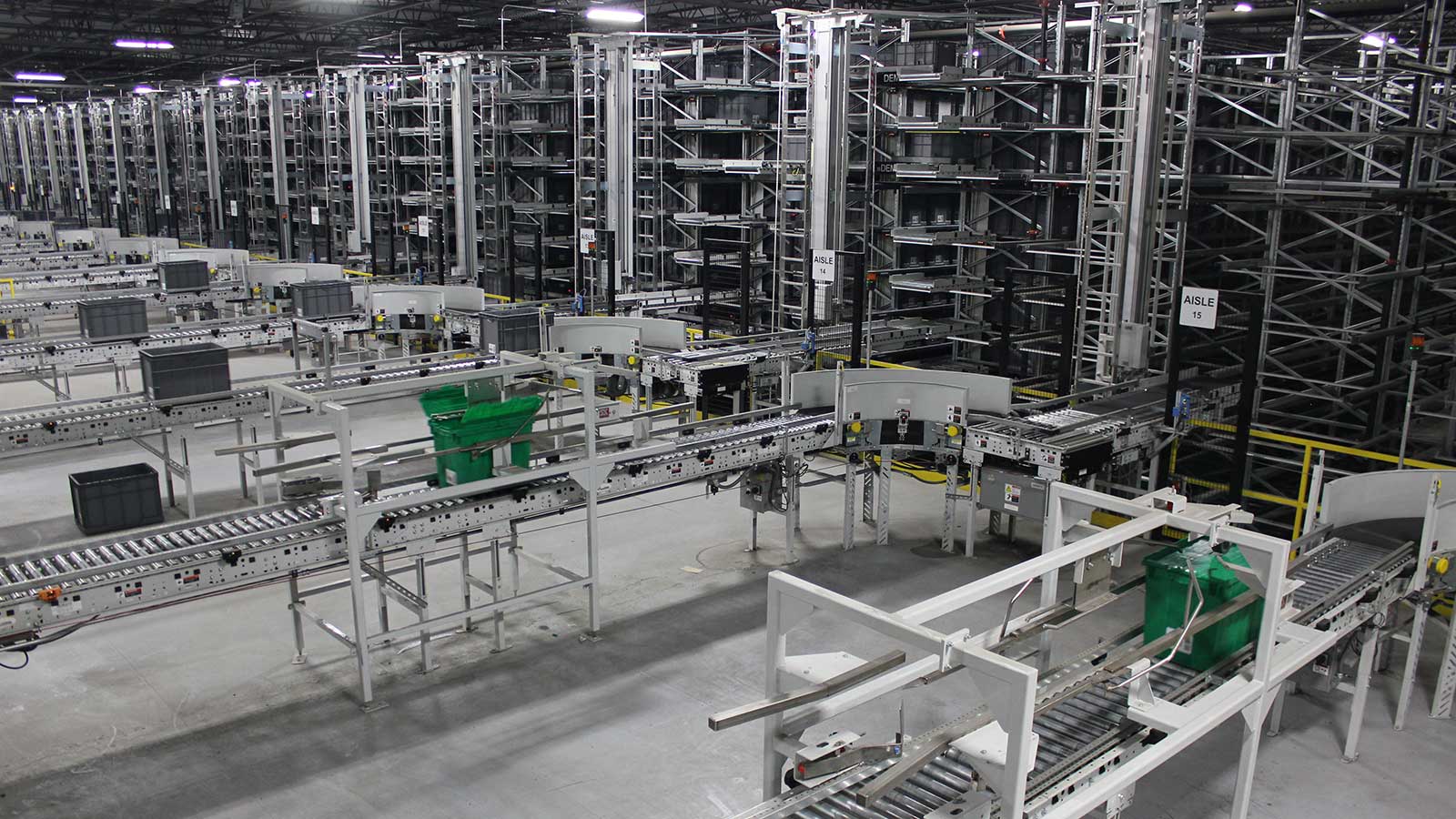

The totes are then conveyed to the Multishuttle. The inventory totes are staged in the Multishuttle subsystem until needed to fulfill retail store orders. Totes are retrieved in a specific sequence and conveyed to the appropriate goods-to-person, RapidPick workstations.
Orders for each store are assembled and the goods-toperson workstations allow operators to pick up to six orders at a time. Ergonomic design allows 100% golden zone picking and supports high picking productivity.
Operators pick items from a donor tote at their ergonomic workstations. A workstation flat screen indicates quantity to “put” into the order totes.
After an order tote is complete, it is conveyed to the tote buffer module in the Multishuttle sub-system. There are two dedicated Multishuttle aisles that serve as a consolidation point for order totes.
After all the totes for a pallet are available, the Dematic software releases the totes to the palletizer.
The benefits of the new system extend beyond the distribution center. Pallets are assembled to make retail store shelf restocking easy and efficient. The system also offers more storage capacity, optimized flow, and provides real-time control with a compact footprint.
To assure high uptime and optimal system performance, Safeway uses Dematic technicians on site. The Resident Maintenance team provides operational support, preventive maintenance, and repairs.
The entire Dematic system is scalable, flexible and modular to assure that Safeway can continue to grow and maintain its position as one of the most innovative retail grocery stores in North America.
- 500 Retail Stores Supported
- 160,000 Pieces/Day
- 440 Store Pallets Shipped/Day
Lifecycle Support Resident Maintenance
The Resident Maintenance program maximizes system uptime and supports daily operations. A strict preventive maintenance schedule extends the life of the system and lowers lifecycle costs.
